Specifications
Dimensions: Overall 155 x 155 x 131mm (6.10 x 6.10 x 5.15 in.). Cutout: 1/2 DIN 139mm x 139mm (5.45 x 5.45 in.)
Features
Faster installation using Quick Start programming, auto-recognition of sensor boards and modular design
At a glance view of pertinent information provided by the large customizable display
Visibility of process parameters by utilizing HART or Profibus DP digital communications
Effortlessly connect with PLCs and DCS’ by choosing the HART or Profibus DP communication options
Ordering Information

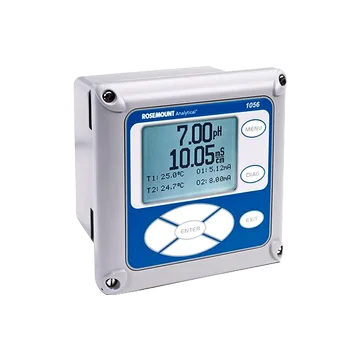

Model 1056 Dual channel transmitter
Power 01 115/230 Vac, 50/60 Hz no relays(1)
Measurement 1 20 Contacting conductivity
Measurement 2 30 Contacting conductivity
Communication AN 4-20 mA analog
UL Approval UL UL approval
Not compatible with Turbidity Measurements
