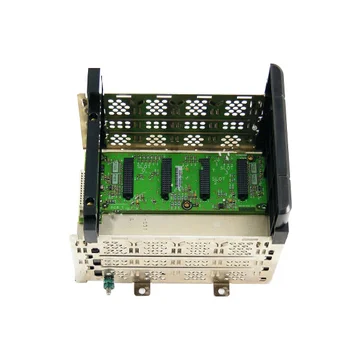

Model 1756-A4
Backplane current, chassis/slot max @ 1.2V DC 1.5 A/-
Backplane current, chassis/slot max @ 3.3V DC
4 A/4 A
Backplane current, chassis/slot max @ 5.1V DC
15 A/6 A
Backplane current, chassis/slot max @ 24V DC
2.8 A/2.8 A
Power dissipation, max 4 W
Isolation voltage Determined by installed power supply and modules
Slots 4
Mounting method Only horizontal
Cabinet size (HxWxD), min
50.8 x 50.8 x 20.3 cm
(20 x 20 x 8 in.)
Weight, approx 0.75 kg (1.7 lb)
Location Panel
Wire size
Functional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F) or greater
Protective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F) or greater
North American temperature code T5
IEC temperature code
T4
Enclosure type rating None (open-style)
