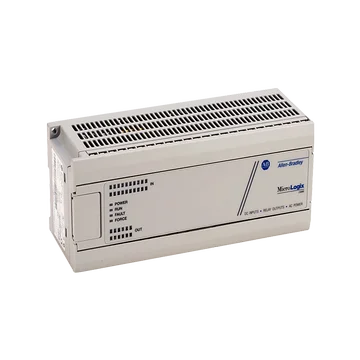

1761-L32BWA | Allen Bradley MicroLogix 1000 Programmable Controller

Name: 1761-L32BWA | Allen Bradley MicroLogix 1000 Programmable Controller
Brand: Allen-Bradley
Price: 221100000 IRR
Availability: InStock

برند :

Allen-Bradley

پارت نامبر :

1761-L32BWA

زمان تحویل:

16 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Isolation	1500V ac
Operating	10g peak acceleration (7.5g DIN rail mounted)(3) (11?1 ms duration) 3 times each direction, each axis
Non-operating	20g peak acceleration (11?1 ms duration), 3 times each direction, each axis
Fast Transient	EN 61000-4 at 2K V Power Supply, I/O; 1K V Comms
Power Supply Voltage	85-264V ac, 47-63 Hz
Terminal Screw Torque	0.9 N-m maximum (8.0 in.-lbs)
Electrostatic Discharge	EN 61000-2 at 8K V
Radiated Susceptibility	EN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHz
Power Supply Max Inrush Current	30A for 8 ms
24V dc Sensor Power (V dc at mA)	200 mA
Max Capacitive Load (User 24V dc)	200 F

Description / توضیحات

General Specifications Memory Size and Type: 1 K EEPROM (approximately 737 instruction words: 437 data words) Power Supply Usage: 120V ac - 29 VA 240V ac - 36 VA 24V dc - Not Applicable Vibration: Shock?: NOTE: DIN rail mounted controller is 1g. Refer to page 12 for vertical mounting specifications. Relays are derated an additional 2.5g on 32 pt. controllers.
