Description / توضیحات

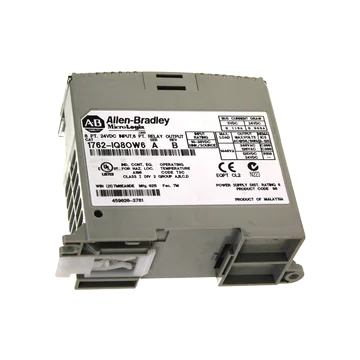

Model 1762-IQ8OW6
Dimensions
90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.)
height including mounting tabs is 110 mm (4.33in.)
Approximate Shipping Weight (with carton) 280g (0.62 lbs.)
Bus Current Draw, (Max)
110 mA @ 5V DC
80 mA @ 24V DC
Heat Dissipation
5.0 W @ 30V DC
4.4 W @ 26.4V DC
(The Watts per point, plus the minimum W, with all points energized.)
Power Supply Distance Rating 6
Isolated Group Group 1 (input 0 3) Group 2 (input 4 7) Group 3 (output 0 5)
Vibration
Shock
Vender ID Code 1
Product Type Code 7
Product Code 98
Hazardous Environment Class
Class I, Division 2, Hazardous Location, Groups A, B, C, D
ISA/ANSI 12.12.01
(C-UL under CSA C22.2 No. 213)
Radiated and Conducted Emissions EN50081-2 Class A
ESD Immunity (IEC1000-4-2) 4 kV contact, 8 kV air, 4 kV indirect
Radiated Immunity (IEC1000-4-3) 10 V/m, 80 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier
Fast Transient Burst (IEC1000-4-4) 2 kV, 5 kHz
Surge Immunity (IEC1000-4-5) 2 kV common mode, 1 kV differential mode
Conducted Immunity (IEC1000-4-6) 10V, 0.15 80 MHz?
(1) Conducted Immunity frequency range may be 150 kHz 30 MHz if the Radiated Immunity frequency range is 30 1000 MHz.
