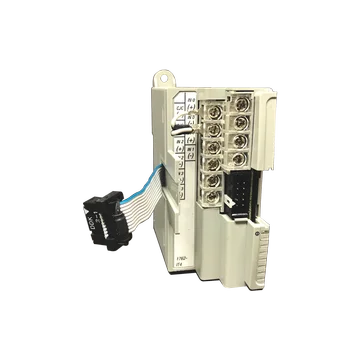

Model 1762-IT4
Dimensions, H x W x D
90 x 40 x 87 mm (3.54 x1.58 x 3.43 in.)
height including mounting tabs is 110 mm (4.33 in.)
Approximate Shipping Weight (with carton) 220 g (0.53 lbs.)
Temperature, non-operating -40 85 ?C (-40 185?F)
Temperature, operating
0 55 ?C (-32 131 ?F)
Humidity, operating
5 95% non-condensing
Altitude, operating 2000 m (6561 ft)
Vibration, operating
10 500 Hz, 5 g, 0.030 in. max. peak-to-peak
Shock, operating 30 g
Vendor I.D. Code 1
Product Type Code 10
Product Code
64
Hazardous Environment Class
Class I, Division 2, Hazardous Location, Groups A, B, C, D
ISA/ANSI 12.12.01
(C-UL under CSA C22.2 No. 213)
Noise immunity NEMA standard ICS 2-230
Radiated and conducted emissions EN50081-2 Class A
ESD immunity (EN61000-4-2) 4 kV contact, 8 kV air, 4 kV indirect
Radiated immunity (EN61000-4-3) 10 V/m, 80 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier
Fast transient burst (EN61000-4-4) 2 kV, 5 kHz
Surge immunity (EN61000-4-5) 1 kV galvanic gun
Conducted immunity (EN61000-4-6) 10V, 0.15 80 MHz?
Conducted Immunity frequency range may be 150 kHz 30 MHz if the Radiated Immunity frequency range is 30 1000 MHz.
