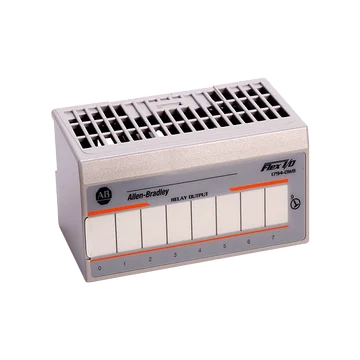

Specifications - 1794-OW8 Relay Output Module
Module Location:
Mounts on 1794-TB2, -TB3, -TB3S, -TBN and -TBNF Terminal Base Units.
When using 1794-TBNF terminal base unit, use 3.0A, 250V ac slow-blow fuses (Littelfuse pt. no. 239003)
Output Voltage Range (load dependent):
5-30V dc @ 2.0A resistive
48V dc @ 0.5A resistive
125V dc @ 0.25A resistive
125V ac @ 2.0A resistive
240V ac @ 2.0A resistive
If used in European Zone 2 potentially explosive atmospheres, voltages must be at or below 60V ac or 75V dc.
Output Current Rating (at rated power):
Resistive
2A @ 5-30V dc
0.5A @ 48V dc
0.25 @ 125V dc
2A @ 125V ac
2A @ 240V ac
Inductive
2.0A steady state @ 5-30V dc, L/R = 7ms
0.5A steady state @ 48V dc, L/R = 7ms
0.25A steady state @ 125V dc, L/R = 7 ms
2.0A steady state, 15A make @ 125V ac, PF = cos = 0.4
2.0A steady state, 15A make @ 240V ac, PF = cos = 0.4
Power Rating (steady state):
250W max. for 125V ac resistive output
480W max. for 240V ac resistive output
60W max. for 30V dc resistive output
24W max. for 48C dc resistive output
31W max. for 125V dc resistive output
250VA max. 125V ac inductive output
280VA max. for 240V ac inductive output
60VA max. for 30V dc inductive output
24VA max. for 48V dc inductive output
31VA max. for 125V dc inductive output
Output Signal Delay:
Isolation Voltage:
Terminal Screw Torque: 7 pound-inches (0.8Nm); NEMA 1794-TBN, -TBNF: 9 pound-inches (1.02Nm)
