Description / توضیحات

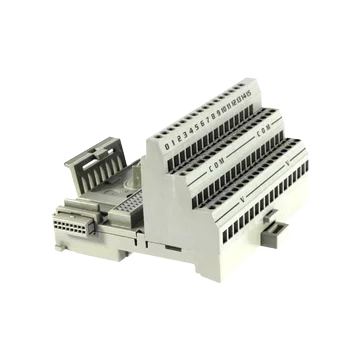

Model 1794-TB3G
Terminal screw torque 0.56...0.79 Nm (5...7 lb-in)
Supply voltage range (max)
ATTENTION
A disconnecting switch does not shut off the current. Make or break a circuit only under no-load conditions.
Isolation Voltage Capable of 50V (continuous) maximum, Basic Insulation Type, Field Wiring Terminals to FLEXBUS, or the lesser of the installed module.
Voltage rating See Working Voltage and Isolation Voltage Ratings for nominal values
Enclosure type rating
None (open-style)
Wiring category? Established by installed module
North American temp code T4A
IEC temp code T4
Dimensions, approx. 94 x 94 x 69 mm (HxWxD) (3.7 x 3.7 x 2.7 in.) (with module installed in terminal base)
Use this Conductor Category information for planning conductor routing.
