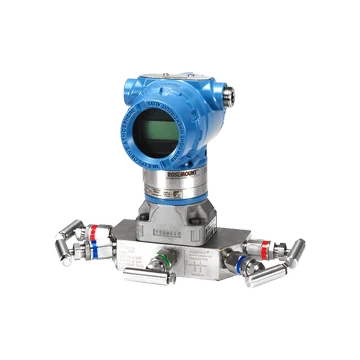

3051CD3A03A1BM5B1I1H7P1Q4 | Rosemount 3051C Coplanar Pressure Transmitter

برند :

Rosemount

پارت نامبر :

3051CD3A03A1BM5B1I1H7P1Q4

زمان تحویل:

10 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Model3051C¹ - Coplanar Pressure Transmitter
O-ringA - Glass-filled PTFE
Pressure range3 - ?1000 to 1000 inH2O (-2,48 to 2,48 mbar)
Housing materialB - Aluminium
Measurement typeD - Differential
Pressure testingP1 - Hydrostatic Testing with Certificate
Alternate flange6H7³ - LCD Display
Mounting bracket4B1 - Traditional flange bracket, CS, 2-in. pipe
Sensor fill fluid1 - Silicone
Transmitter outputA² - 4-20 mA with Digital Signal Based on HART Protocol
Isolating diaphragm3³ - Alloy C-276
Product certificationsI15 - ATEX Intrinsic Safety and Dust
Calibration certificateQ4 - Calibration Certificate
Materials of construction0 - Alternate Process Connection
Display and interface optionsM5 - LCD Display

Description / توضیحات

Ordering Information Conduit entry size - 1/2-14 NPT NOTE: Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Panel mounting bolts are not supplied. Dust approval not applicable to Output Code X. Requires 0 code in Materials of Construction for Alternate Process Connection.

Attachment / فایل ضمیمه

Manual: Rosemount 3051 Wireless Pressure Transmitters Pressure, Level, and Flow Solutions with WirelessHART? Protocol

Manual: Rosemount 3051 with 4-20mA and 1-5 Vdc Low Power HART protocols (legacy)

Manual: Rosemount 3051 with Profibus PA protocol

Quick Start Guide: Enhanced 3051 Upgrade Kit

Quick Start Guide: Rosemount 3051 Pressure Transmitter and Rosemount 3051CF DP Flowmeters with WirelessHART? Protocol

Quick Start Guide: Rosemount 3051 Pressure Transmitter with FOUNDATION? fieldbus protocol (Rev. 8)

Quick Start Guide: Rosemount 3051 with 4-20mA and 1-5 Vdc Low Power HART protocols (legacy)

Quick Start Guide: Rosemount 3051 with 4-20mA HART (Revision 5 and 7)

Quick Start Guide: Rosemount 3051 with FOUNDATION? Fieldbus protocol

Quick Start Guide: Rosemount 3051 with Profibus PA protocol
