Ordering Information

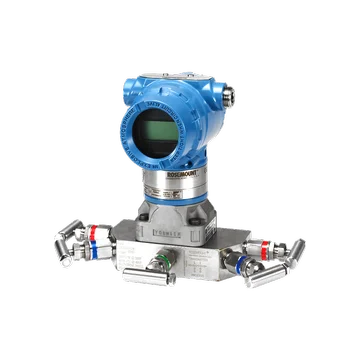

Model 3051C(1) Coplanar Pressure Transmitter
Measurement type D Differential
Pressure range 3 -1000 to 1000 inH2O (-2,48 to 2,48 bar)
Transmitter output A(2) 4-20 mA with Digital Signal Based on HART Protocol
Materials of construction 0 Alternate Process Connection
Isolating diaphragm 3(3) Alloy C-276
O-ring A Glass-filled PTFE
Sensor fill fluid 1 Silicone
Housing material K SST
Manifold assembly(4) S5 Assemble to Rosemount 305 Integral Manifold
Product certifications I1(5) ATEX Intrinsic Safety and Dust
M6
Calibration certificate Q4 Calibration Certificate
Material traceability certification Q8 Material Traceability Certification per EN 10204 3.1
Pressure testing P1 Hydrostatic Testing with Certificate
Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
“Assemble-to” items are specified separately and require a completed model number.
Dust approval not applicable to Output Code X. See “IEC 62591 (WirelessHART Protocol)” on page 62 for wireless approvals.
Integral Manifold
Model 0305 Integral manifold
Manufacturer R Rosemount
Manifold style C Coplanar
Manifold type 5(1) Five-valve
Process connection style B(2) ½–14 NPT female
Packing material 1(3) PTFE
Valve seat 1 Integral
Mounting brackets B4 SST mounting bracket for 2-in. (50.8 mm) pipe mounting, 300 SST bolts
Bolt materials L4(4) Austenitic 316 SST bolts
Not available with traditional manifold style T.
Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.
Includes PTFE tape on drain/vent valves and plugs.
Not available with ASME B31.1 manifold type codes 7, 8, and 9.
