Overview

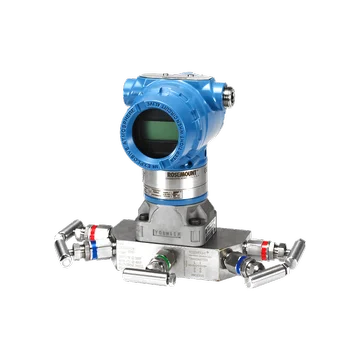

Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:
Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)
LOI with straightforward menus and built-in configuration buttons (option code M4)
Safety Certification (option code QT)
Ordering Information
Model 3051C(1) Coplanar Pressure Transmitter
Measurement type G Gage
Pressure range 4 –14.2 to 300 psi (-0,97 to 20,68 bar)
Transmitter output A(2) 4 - 20 mA with Digital Signal Based on HART Protocol
Materials of construction 0 Alternate Process Connection
Isolating diaphragm 2(3) 316L SST
O-ring A Glass-filled PTFE
Sensor fill fluid 1 Silicone
Alternate flange(4) H2 Traditional Flange, 316 SST, SST drain/vent
Mounting bracket(5) B3 Traditional flange flat bracket, CS, 2-in. pipe
Product certifications I1(6) ATEX Intrinsic Safety and Dust
Display and interface options M5 LCD Display
HART Revision configuration (requires HART Protocol Output Code A) HR5(7) Configured for HART Revision 5
Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
Requires 0 code in Materials of Construction for Alternate Process Connection.
Panel mounting bolts are not supplied.
Dust approval not applicable to Output Code X. See “IEC 62591 (WirelessHART Protocol)” on page 62 for wireless approvals.
Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
