Ordering Information

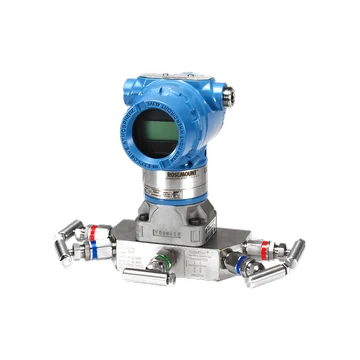

Model 3051C(1) Coplanar Pressure Transmitter
Measurement type G Gage
Pressure range 5 –14.2 to 2000 psi (-0,97 to 137,89 mbar)
Transmitter output A(2) 4-20 mA with Digital Signal Based on HART Protocol
Materials of construction 0 Alternate Process Connection
Isolating diaphragm 2(3) 316L SST
O-ring A Glass-filled PTFE
Sensor fill fluid 1 Silicone
Manifold assembly(4) S5
Assemble to Rosemount 305 Integral Manifold
Mounting bracket(5) I1(6) ATEX Intrinsic Safety and Dust
Display and interface options M5 LCD Display
Calibration certificate Q4 Calibration Certificate
Material traceability certification Q8 Material Traceability Certification per EN 10204 3.1
Q32
Pressure testing P1 Hydrostatic Testing with Certificate
Model 0305 Integral manifold
Manufacturer R Rosemount
Manifold Style C Coplanar
Manifold Type 5(7) Five-valve
Process connection style B(8) ½–14 NPT female
Packing material 1(9) PTFE
Valve seat 1 Integral
Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
“Assemble-to” items are specified separately and require a completed model number.
Panel mounting bolts are not supplied.
Dust approval not applicable to Output Code X. See “IEC 62591 (WirelessHART Protocol)” on page 62 for wireless approvals.
Not available with traditional manifold style T.
Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.
Includes PTFE tape on drain/vent valves and plugs.
Made in Singapore
