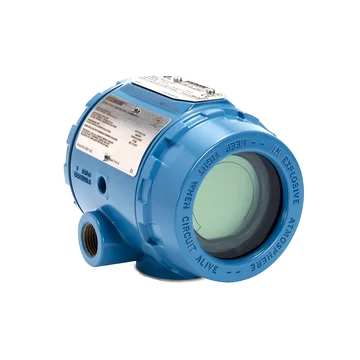

3144PD2A1NAB5M5Q4 | Rosemount 3144P Temperature Transmitter

Name: 3144PD2A1NAB5M5Q4 | Rosemount 3144P Temperature Transmitter
Brand: Rosemount
Price: 703000000 IRR
Availability: InStock

برند :

Rosemount

پارت نامبر :

3144PD2A1NAB5M5Q4

زمان تحویل:

14 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Input	Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
Model	3144P Temperature Transmitter
Housing	Dual-compartment field mount
Material	Aluminum
Condition	New & Original in Factory Packing
Diagnostics	Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking
Output Signal	4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol
Factory Warranty	12 Months
Display/Interface	Large LCD display with percent range graph and buttons/switches
Conduit entry size	M20 1,5 (CM20)
Calibration Options	Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications

Description / توضیحات

Specifications Features Industry-leading accuracy and reliability for best performance in critical control and safety applications. Transmitter-sensor matching improves measurement accuracy up to 75%. 5-year long-term stability extends calibration intervals to reduce trips to the field. Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs. Ordering Information Model 3144P Temperature transmitter Housing style D2 Field mount housing, dual-compartment housing Transmitter output A 4—20 mA with digital signal based on HART Protocol Measurement configuration 1 Single-sensor input Product Certificates NA No Approval Mounting bracket B5 “L” mounting bracket for 2-in. pipe or panel mounting - All SST Display M5 LCD display Calibration certification Q4 Calibration certificate (3-point calibration)
