Description / توضیحات
Specifications
Features
Industry-leading accuracy and reliability for best performance in critical control and safety applications.
Transmitter-sensor matching improves measurement accuracy up to 75%.
5-year long-term stability extends calibration intervals to reduce trips to the field.
Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs.
Ordering Information

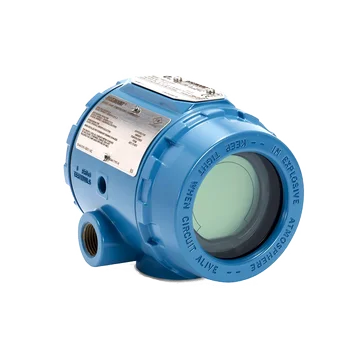

Model 3144P Temperature transmitter
Housing style D6 Field mount housing, dual-compartment housing
Transmitter output A 4—20 mA with digital signal based on HART Protocol
Measurement configuration 1 Single-sensor input
Product Certificates K7(1)(2) IECEx Intrinsic Safety, Flameproof, Dust Ignition-Proof and Type n combination
Mounting bracket B5 “L” mounting bracket for 2-in. pipe or panel mounting - All SST
Display M5 LCD display
Alarm level configuration CN NAMUR alarm and saturation levels, low alarm
Calibration certification Q4 Calibration certificate (3-point calibration)
Quality certification for safety QT Safety-certified to IEC 61508 with certificate of FMEDA data (HART only)
When IS approval is ordered on a FOUNDATION Fieldbus, both standard IS and FISCO IS approvals apply. The device label is marked appropriately.
Consult factory for availability when ordering with HART or FOUNDATION Fieldbus models.
