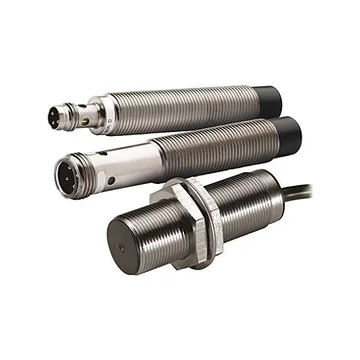

872C-D5NE18-D4 | Allen Bradley Proximity Sensors

Model 872C-D5NE18-D4 Load Current 100 mA Load Current, Min. 5 mA Leakage Current 0.9 mA Operating Voltage 10 ... 30V DC Voltage Drop 6V Repeatability 2% Hysteresis 10% typical Protection Type False pulse, transient noise, reverse polarity, short circuit, and overload Certifications cULus Listed and CE Marked for all applicable directives Enclosure Type Rating NEMA 1, 2, 3, 4, 6P, 12, 13; IP67 (IEC529) Housing Material Nickel-plated brass barrel, plastic free (PBT) Connections 2-conductor #26 AWG PVC Operating Temperature [C (F)] -25 +70? (-13 +158?) Shock 30 g, 11 ms Vibration 55 Hz, 1 mm amplitude, 3 planes
