Features
- Max resolution 0.001mA (6mA range)
- Max range 60A (0.01A resolution)
- Limit audible/visual alarm
- 0.25, 0.5, 3.5, 10, & 12mA selectable limits
- 15Hz to 1kHz frequency range
- Low pass (50/60Hz)
- Appliance filters (IEC/EN 61557-16)
- Max readings and hold function
- Low influence of external low frequency magnetic fields
- @ IN: 3.500 to 600.0mA
- ≤30 A/m, operating class 2
- 6000 count display
- Typical battery life of 60 hours
- CSA, CE, and EMC compliance
- IEC/EN 61326-1, IEC/EN 61326-2-2

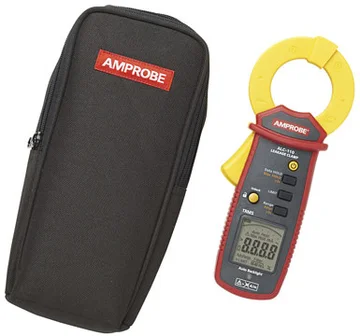

The Amprobe ALC-110 leakage clamp features a mechanical jaw lock to assure accuracy of low current measurements, avoiding disturbance from measured wires and magnetic fields.
Amprobe ALC-110 Leakage Clamp Applications
Measure earth and differential leakage currents
Measure leakage currents through the earth (PE) conductor
Measure appliance current consumption without interruptions to the circuit
Trace the source of earth leakage current
Identify intermittent GFCI trips without switching equipment off
