Features
- 0 to 100% RH humidity measuring range
- ±1.3% RH accuracy
- 0.01% RH resolution
- -40 to 80°C (-40 to 176°F) temperature measuring range
- ±0.1°C at 20°C accuracy
- 0.01°C resolution
- 10 to 28 VDC power supply
- Modbus RTU (RS485) or CANopen output
- M12x1 connector
- Polycarbonate or stainless steel housing
- E+E proprietary coating on sensor element
- IP65 protection rating

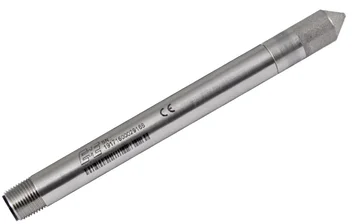

The E+E EE072 humidity and temperature probe meets the requirements of demanding process and climate control applications such as agriculture, life stock, food, pharma, clean rooms, outdoor, artificial snow machines and transportation.
The EE072 has the ability to measure relative humidity (RH) and temperature (T) and also calculates all other humidity related parameters.
Dew point (Td)
Frost point (Tf)
Wet bulb temperature (Tw)
Ice bulb temperature (Ti)
Water vapour partial pressure (e)
Mixture ratio (r)
Absolute humidity (dv)
Specific enthalpy (h)
The EE072 humidity sensing element is manufactured with state-of-the-art thin film technology for high measurement accuracy. The sensing element is protected by the E+E proprietary coating against corrosive and electrically conductive pollution. The robust sensing head in combination with fully encapsulated electronics, the EE072 provides highly accurate and stable measurements in multiple types of harsh environments.
