Features
- Threads, flanges or hygienic connections
- -40 to 302°F (-40 to 150°C) process temp
- 1.5 to 600psi (-1/0 up to to 40bar) measuring range
- ±0.05% accuracy
- Overload-resistant
- HistoROM data management
- Highest safety due to gastight feedthrough
- Aluminum or stainless steel (316L) housing
- 1.5 to 600psi (-1/0 up to to 40bar) measuring

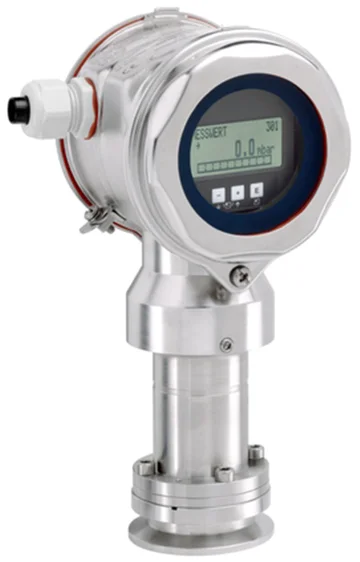

The E+H Cerabar PMC71 Pressure Transmitter features a capacitive, oil-free ceramic measuring cell and is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
