Features
- Threads and flanges process connections
- -94 to 752°F (-70 to 400°C) temperature
- 100mbar to 16bar (1.5 to 240psi) measuring ranges
- ±0.075% accuracy
- Supply / Communication
- 4 to 20 mA HART:
- 10,5 to 45V DC
- Ex ia: 10,5 to 30V DC
- PROFIBUS PA /
- FOUNDATION Fieldbus:
- 9 to 32V DC
- ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC
- SIL, EN10204-3.1, NACE MR0175, MR0103

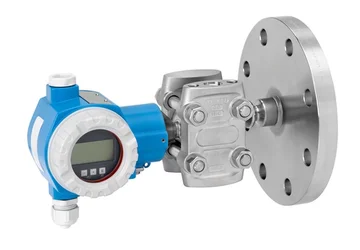

The E+H Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.
