Features
- Completely PTFE-encapsulated horn antenna
- HistoROM data management
- Heartbeat Technology
- Flush-mounted with cladded flange
- -321 to 392°F (-196 to 200°C) temperature range
- -14.5 to 362psi (-1 to 25bar) pressure range
- 40m (131ft), 60m (197ft) max measuring range
- ±2mm accuracy
- 26GHz K-band

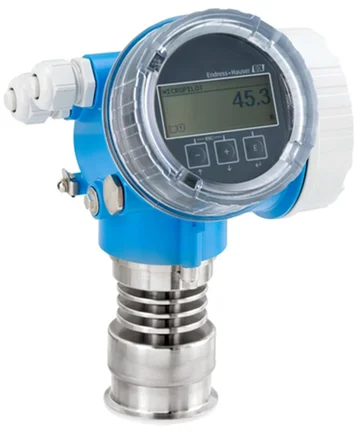

The E+H Micropilot FMR52 Radar Level Transmitter is designed for applications in aggressive liquids. The Micropilot
FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is
also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI,
3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and
slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.
