Ordering Information

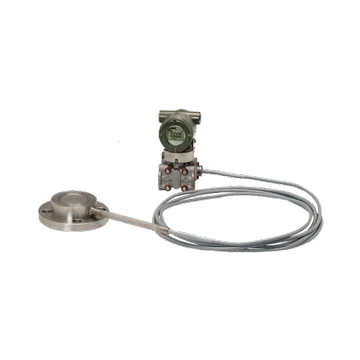

Model EJA438E Diaphragm sealed gauge pressure transmitter
Output signal -F Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C31T02-01EN)
Measurement span (capsule) A 0.06 to 3.5 MPa (8.6 to 500 psi)
S Always S
C Always C
Coverflange bolts and nuts material G 316L SST
Installation -9 Horizontal piping type and left side high pressure
Amplifier housing 1 Cast aluminum alloy
Electrical connection 9 M20 female, two electrical connections with a blind plug(1)
Integral indicator D Digital indicator(2)
Mounting bracket B 304 SST 2-inch pipe mounting, flat type (for horizontal piping)
Process connection style -W Flush type
Flange rating A1 ANSI class 150
Process connection size (Process flange size) 2 2-inch (50 mm)
Flange material C 316 SST(3)
Gasket contact surface(4) 2 Flat (no serration)
Extension 0 None
Fill fluid -1 High temp. and high vacuum use (Silicone oil)(8)(9)
Capillary connection A Side of diaphragm seal unit
2 Always 2
Capillary length(10) 9 9 m
/KS26
Calibration units(12) /D3 bar calibration (bar unit)
Material certificate /M2W Process flange, Block
Pressure test/Leak test certificate(13)(14) /T52 For A-Capsule
The “*” marks indicate the most typical selection for each specification.
Material of a blind plug; aluminum alloy for code 5 and 9, and SUS304 for code 7.
Not applicable for output signal code G.
Forged version of the material may be used.
See table 3 ‘Gasket contact surface’ on page 5.
Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.
Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and hightemperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.
In case of wetted parts material code HW (Hastelloy C), TW (Tantalum), and UW (Titanuym) for 2-inch pressure flange, specify capillary length from 1 to 5 m.
When specified flushing connection ring code A or B, exclusive gasket is provided for transmitter side.
In case of wetted parts material code TW (Tantalum), the process temperature limit is –10 to 200°C.
Not applicable for wetted parts material code UW.
In case of wetted parts material code HW (Hastelloy C), TW (Tantalum), and UW (Titanuym) for 2-inch pressure flange, specify capillary length from 1 to 5 m.
Not applicable with color change option. Not applicable for amplifier housing code 2.
The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option code D1, D3, and D4.
The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.
