Features
- 250 psig (17.2 bar) maximum inlet pressure
- Emergency outlet 50 psig (3.4 bar) over outlet
- Propane flow capacities up to 1,200,000 BTU/hr
- Available in adjustable or fixed outlet pressures
- 1/4in NPT inlet and choice of outlet connection
- 1/4in female NPT side outlet connection for gauge
- -20 to 180°F (-29 to 82°C) operating temperature
- UL listed, CRN certified, & CE approved
The Fisher 67C series high-pressure (pounds-to-pounds) LP-gas regulators meet a variety of applications in liquid or vapor service.
A compact body design makes this series ideal for installations where space is limited. Choose from one of three adjustment methods
(wrench, handwheel, or dial) or a fixed, tamper resistant model.

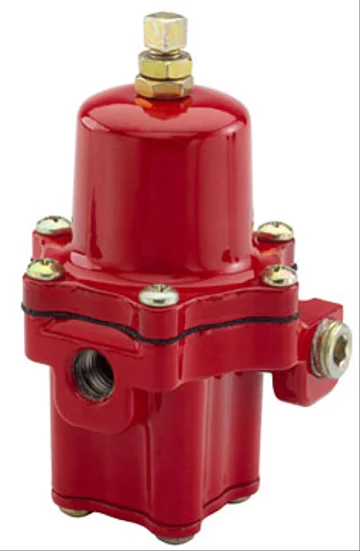

The 67CW is the wrench adjustment model and is available in outlet pressures of:
3 to 20 psi (0.2 to 1.4 bar) with 675,000 BTU/hr capacity
3 to 35 psi (0.2 to 2.4 bar) with 750,000 BTU/hr capacity
50 to 135 psi (3.4 to 9.3 bar) with 1,000,000 BTU/hr capacity
The 67CH is the handwheel version and is available in the following ranges:
3 to 20 psi (0.2 to 1.4 bar) with 675,000 BTU/hr capacity
3 to 35 psi (0.2 to 2.4 bar) with 750,000 BTU/hr capacity
30 to 60 psi (2.1 to 4.1 bar) with 1,200,000 BTU/hr capacity

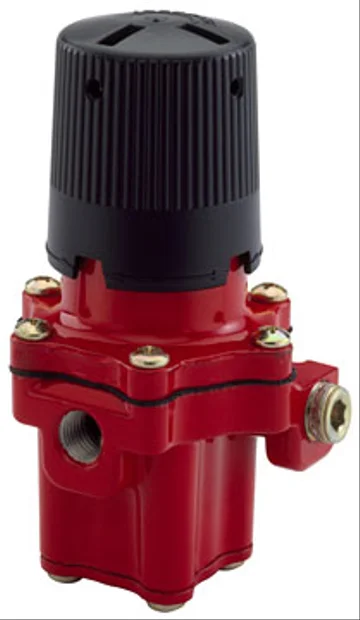

The 67CD with dial calibration accuracy is nearly equivalent to that of a commercial pressure gauge, and eliminates the need
for a pressure gauge on portable applications.
3 to 35 psi (0.2 to 2.4 bar) with 750,000 BTU/hr capacity
5 to 20 psi (0.34 to 1.4 bar) with 675,000 BTU/hr capacity
20 to 50 psi (1.4 to 3.4 bar) with 1,200,000 BTU/hr capacity
40 to 100 psi (2.8 to 6.9 bar) with 1,000,000 BTU/hr capacity

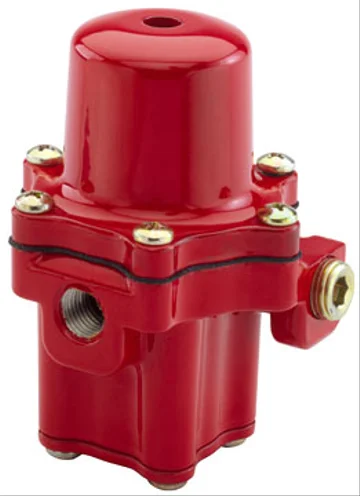

The 67CN is a compact unit with a fixed (non-adjustable) outlet setting and a tamper resistant spring case. It is available in three setpoints:
10 psi (0.7 bar) with 400,000 BTU/hr capacity
15 psi (1 bar) with 600,000 BTU/hr capacity
20 psi (1.4 bar) with 750,000 BTU/hr capacity
Fisher equipment must be installed, operated and maintained in accordance with Federal, state, and local codes and Fisher
instructions. Only personnel trained in the proper procedures, codes, standards and regulations of the LP-gas industry
should install and service this equipment.
