Features
- 1 to 600 gpm (3.8 to 2271 lpm)
- ±3% accuracy
- 225psi
150psi (BSP)
135psi (DIN) - 32 to 140°F (0 to 60°C)
- 0.90in (23mm) low-profile electronics
- 1/2 to 4in turbine sizes available
- CE approval
IP65
RoHS 2011/65/EU
NSF certified (3 and 4in only)

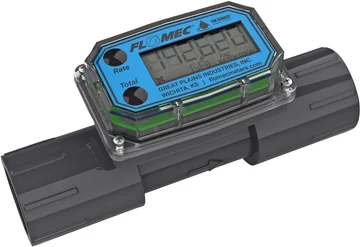

GPI TM Series Water Meters indicate batch, cumulative totals, and rate of flow measured in gallons, litres or cubic feet. They are easy to install with Spigot, NPT, BSP, 150# ANSI flange, or DIN flange fittings. The alkaline battery lasts for two years, and the non-volatile totals mean amounts are retained when batteries are replaced or power is lost. TM Series meters are available with either a computer for local electronic display, or one of three versions of output modules to provide a digital signal to customer interfacing equipment.
Fitting
Turbine Size
Spigot, NPT, BSP
1in, 1 1/2in and 2in
150# ANSI Flange
3in and 4in
DIN Flange
3in and 4in
GPI TM Series Water Meter Applications
OEM water treatment equipment / skids
Water-based cooling systems
Sub-metering of facility water usage
Chemical feed systems
Wastewater treatment equipment
Monitoring clean fluids
Irrigation
Cooling towers
Batching
Blending
Plant process water
