Features
- mA Measurement Range / Accuracy
- 0 to 20.99 mA / 0.2% + 5 counts (clamp)
- 21.0 to 100.0 mA / 1% + 5 counts (clamp)
- 0 to 24 mA / 0.2% + 2 counts (test jacks)
- mA Source Range / Accuracy
- 0 to 24.00 mA 0.2% / + 2 counts
- mA Simulate Range / Accuracy
- 0 to 24.00 mA 0.2% / + 2 counts
- Simultaneously measure mA in-circuit with 24V loop power
- auto-off, backlight timeout extend battery life

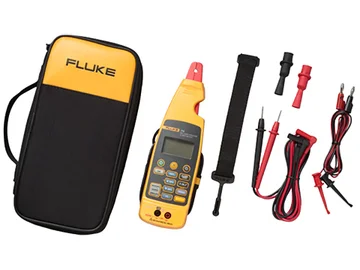

The Fluke 772 Milliamp Process Clamp Meter measures 4 to 20 mA signals without "breaking the loop".
The 772 meters can source 4 to 20 mA signals for testing control system I/O or I/Ps, simulate
4 to 20 mA signals for testing control system I/O and measure 4 to 20 mA signals with in-circuit
measurement. They can also simultaneously measure milliamps in-circuit with 24 V loop power for
powering and testing transmitters as well as source mA output signals in a linear ramp or 25%
step output.
