Features
- Long-term data storage via user supplied Compact Flash memory card (2 GB Max)
- Saved-data playback on display
- Math and totalization
- RS485 or Ethernet options
- Screen saver
- Data viewer & parameter loader PC software
- 6.3" x 5.7" x 7.4" (panel mount)
- 3 lbs
- 18-point recording: 12 types of TCs, 5 types of RTDs and voltage/current input are available

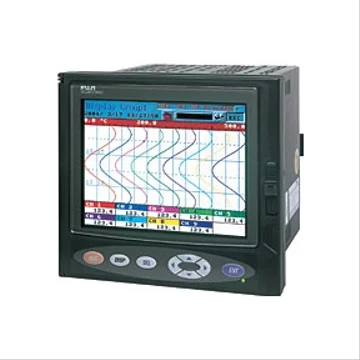

The compact Fuji Electric PHL paperless recorder is an 18-channel recorder that displays data
on a brilliant 5.7" TFT color LCD. The Fuji Electric PHL paperless recorder features a wide variety of
display modes to allow users to view data as trends (horizontally or vertically), bar graphs, analog
meters, digital/numeric output, totalized output, event summaries, and more. Switch between modes
quickly and easily with the 8-key front panel. The adjustable-time screen-saver function extends the
life of the display and reduces power consumption.
Users can record up to 12 types of thermocouples, 5 types of RTDs, and DC voltage/current input on
one unit. The Fuji Electric PHL paperless recorder can record years of data with a 1GB (max)
Compact Flash card. Free PC support software allows you to configure the Fuji Electric PHL paperless
recorder from a PC and view historical data stored on the compact flash card. Fuji Electric PHL paperless
recorders come standard with math and totalizing functions. Optional Ethernet communications allows
for FTP transfer of files stored on the recorder's Compact Flash card and for live monitoring of all inputs
and alarm status via HTTP.
Fuji Electric PHL paperless recorders include USB configuration cable, waterproof gasket for the front
face, noise filter for the power supply, PC support software, instruction manual, and panel mounting
brackets.
Features of the Fuji Electric PHL Paperless Recorder
Long Term Data Storage: Up to 1.5 years in Compact Flash
Saved Data playback: Saved data in Memory card can be easily called out and played back on
display
Math and totalization: These functions are available as standard.
Communications Option: RS485 (MODBUS RTU protocol) or Ethernet
Screen saver: Period of non-operation exceeds the setting value of parameter, recorder turns off
the backlight of LCD.
PC support software (Data Viewer/Parameter Loader): CD-ROM and loader cable included with
recorder
Compact size: 160 x 144 x 185mm (6.3" x 5.7" x 7.4") (WxHxD) (Panel mount), 1.5 kg (3 lbs.)
compact size
18-point recording: 12 types of thermocouples, 5 types of RTDs and voltage/current
input are available
