Features
- Split-core design for fast, easy installation
- Ranges available:
- 10 to 100 A; 1.25 inch opening
- 20 to 200 A; 1.25 inch opening
- 60 to 600 A; 2 inch opening
- Output 0.333 Volt AC at rated current
- ±1% linearity accuracy
- Accuracy at 10% to 130% of rated current
- 8 ft (2.44m) 22 AWG twisted pair leads

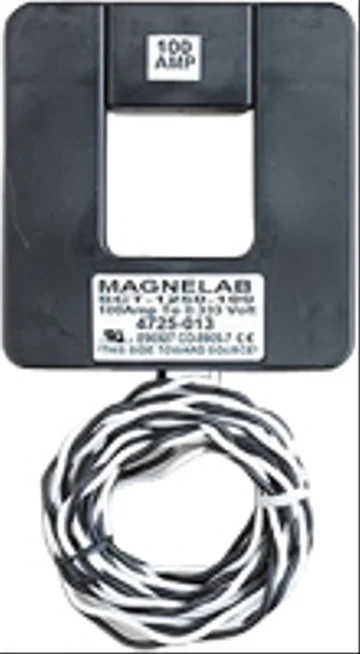

The HOBO T-MAG-SCT Series AC Transformers mounted around a current carrying wire to measure AC
Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart
TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is
accurate current measurement for many types of equipment, including variable frequency drives
and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module.
