به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.
ویژگی ها / Specifications
Model

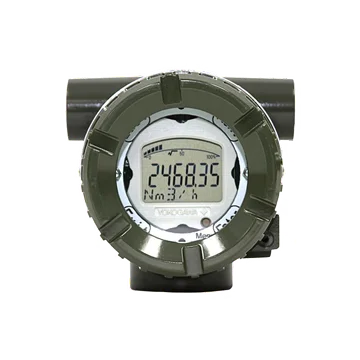

MLX - Loop Indicator
Paint
/P7 - Gray (RAL # 7046)
Coating
/X2 - Polyurethane-Epoxy Anti-corrosion coating?
Housing
2 - SUS316 cast stainless steel and ASTM CF-8M
Mounting
1 - 2 inch Horizontal Pipe
Calibration
/ENG - Calibration range and scale
Conforms to
FM3600, FM3615, UL 1203
Input Signal
-A - 4 to 20mA DC
Communication
-1 - Standard
Factory Mutual
/FF1 - FM Explosion-proof/FM Dust-Ignition-Proof Approval
Product Number
MLX-A12-13/FF1/X2/ENG/SST/P7
Temperature class
T4
Ambient Temperature
40 to 80?C ( 22 to 176?F)
Electrical Connection
3 - ISO M20 x 1.5 female, two electrical connections without blind plugs
Stainless steel tag plate
/SST - Stainless steel tag screw attached to housing
Description / توضیحات
Ordering Information
Explosionproof/Dust-Ignition-Proof for Class I, II, III, Division 1 & 2, Groups A G, Class I, Zone 1, Group IIC T4
Note:
1. Option only available with /FF1 Option.
