Features
- 0.87in (22.1mm) outer diameter
- Up to 100 psi (230.8 ftH2O) pressure ranges
- Optional temperature output
- Low power output signals, can be battery-powered
- 5:1 turndown using optional HART signal
- CE compliant to suppress RFI, EMI and ESD
- IP68 environmental rating
- Pending ATEX, CSA, & IECex certifications
- 3-year warranty

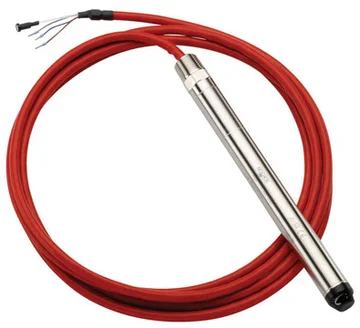

The NOSHOK 611 series level transmitters measure depth by converting the amount of pressure on a diaphragm into an electrical signal.
An optional HART output is available for communicating with a controller. Temperature measurement is also an option via a second output signal.
These submersible transmitters are used for the following applications:
Well head measurement
Groundwater monitoring
Level measurement in open bodies of water
Sewage lift and pumping stations
Setting ponds and rainwater basins
