Features
- Cable sold separately
- Temperature ranges
- 482 to 1472°F (2ML)
- 725 to 2912°F (2MH)
- Optical resolution
- 1.6μm spectral range
- 10ms response time
- 0.1 to 1.1 emissivity
- 4-20mA analog & alarm output
- 5 to 28VDC power supply
- IP65 NEMA-4 front mountable
- At vacuum processes up to 10–3mbar

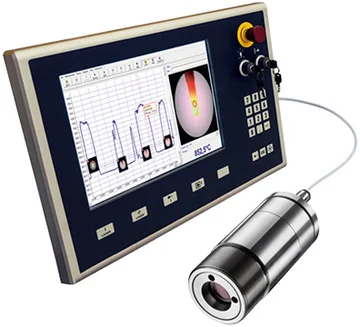

The CSvideo 2M infrared temperature sensor uses both video and laser crosshair sighting to align sensors for accurate temperature measurements of metal or ceramic surfaces in hard-to-reach places. Its short measuring wavelength of 1.6μm reduces errors when measuring surfaces with low or unknown emissivity.
The CSvideo 2M is available with temperature ranges from 482 to 2912°F and can be used in temperatures up to 158°F without additional cooling. The CSvideo 2M features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis.
The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
