Features
- Available lenses
- 18° x 14° FOV, f = 0.7in
- 29° x 22° FOV, f = 0.5in
- 53° x 38° FOV, f = 0.3in
- 80° x 54° FOV, f = 0.2in
- ±3.6°F or ±2% accuracy
- 8 to 14µm spectral range
- 382 x 288px optical resolution
- Switch between 80 or 27Hz measurement speed
- Temperature ranges up to 2732°F
- 40mK temperature resolution

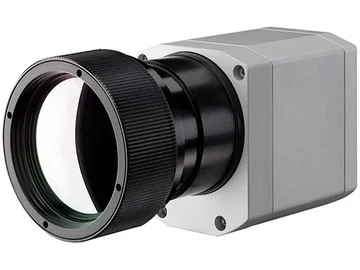

The Optris PI 450i infrared camera is designed to detect the slightest temperature differences with a thermal sensitivity of 40mK,
providing real time thermographic images in high speed. Its high sensitivity makes the PI 450i well suited for quality control or
medical prevention applications.
The Optris PI 450i infrared camera comes with thermography software PIX connect, allowing real-time temperature analyzation and remote
control of the camera. Also, individual alarm levels with defined visual or acustic alarm signals can be set.
