Features
- Please see Description section for details on appropriate adapter and transducer connections.
The Panametrics AT600 cable adapters connect legacy products to the new AquaTrans AT600 ultrasonic flow meter. The AT600 can serve as a field replacement for the retired AT868. The only consideration when using legacy parts is the electrical connection. Below are a variety of solutions to connect existing instrumentation to the new AT600.
CF-LPThe 210-410-LF adapts the standard AT6 Cable to the CF-LP transducer on the transducer side. Two are required per transducer set, as they are sold as a single piece. The adapter is rated for 4 MHz frequency and up to 446°F (230°C).

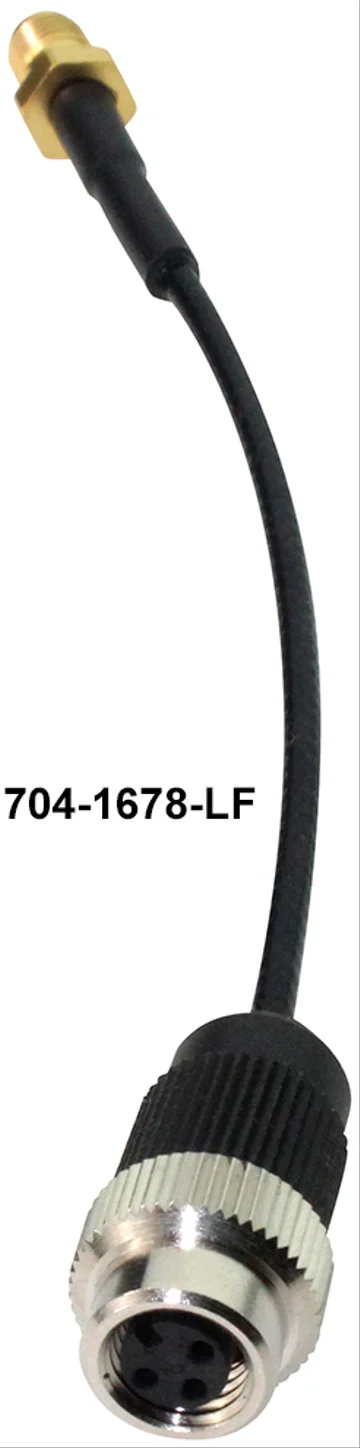

UTXDR-408The 704-1678-LF adapts the standard AT6 Cable to the CF-LP transducer on the transducer side. Two are required per transducer set, as they are sold as a single piece. The adapter is rated for 4 MHz frequency and from -40 to 248°F (-40 to 120°C).
C-RS/C-PTThe AT6-CADT adapts the standard AT6 Cable to the C-RS and C-PT transducers on the transducer side. This adapter is sold in a pair, therefore only one is required per transducer set.
AT600 transducer terminal adapter to flying leadThe 238-443-00 adapts the SMB connector on the terminal strip of the AT600 to accept a standard flying lead. This allows any standard legacy cable with stripped leads to be wired to the AT600. 3-foot cable SMB to screw terminal. Two are required, one for the upstream cable and one for downstream.
