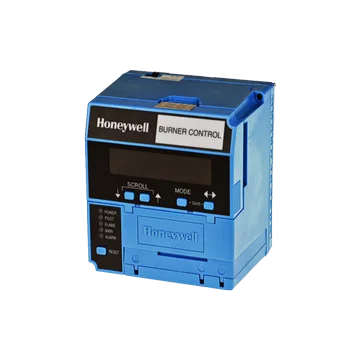

RM7850A1019 | Honeywell Burner Programming Control [STOCK-Ship Same Day] [NEW Surplus for Clearance] - 1 piece available

Name: RM7850A1019 | Honeywell Burner Programming Control [STOCK-Ship Same Day] [NEW Surplus for Clearance] - 1 piece available
Brand: Honeywell
Price: 465300000 IRR
Availability: InStock

برند :

Honeywell

پارت نامبر :

RM7850A1019

زمان تحویل:

8 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Voltage	120 Vac (+10, -15%)
Comments	LHL-LF&HF Proven
PrePurge	Determined by ST7800A Purge Timer Card
Frequency	50 Hz; 60 Hz (Â±10%)
PostPurge	15 sec
Vibration	0.5 G environment
Interlocks	Lockout
Pilot Type	interrupted
Application	Programming Control
Preignition	Yes
Weight (kg)	0.7 kg
Weight (lb)	1 lb 10 oz
AirFlow Check	User selectable
Dimensions (mm)	127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase
Dimensions (in.)	5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase
Approvals, Swiss RE	Acceptable
European Directives	Complies with Gas Appliance Directive (90/396/EEC). Low Voltage Directive (73/23/EEC). EMC Directive (89/336/EEC).
Required Components	Q7800A, B Universal Wiring Subbases. R7847, R7849, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card.
Second Stage Pilot Valve	Intermittent
Approvals, Factory Mutual	Report No. J.I. OYOA9.AF.
Flame Establishing Period â€“ Main	3 sec, or 5 sec, or Intermittent
Flame Establishing Period â€“ Pilot	3 sec or 5 sec
Shipping and Storage Temperature Range (C)	-40 C to +60 C
Shipping and Storage Temperature Range (F)	-40 F to +140 F
Approvals, Federal Communications Commission	FCC Part 15, Class B, Emissions.

Description / توضیحات

RM7850A1019/U Programming Control meeting European Community Timings-LHL, HF/LF Proving Access for external electrical voltage checks. Application flexibility and communication interface capability. Five LEDs provide sequence information. Five function Run/Test Switch. Interchangeable plug-in amplifiers. Local or remote annunciation of operation and fault information (optional). Nonvolatile memory retains history files and lockout status after loss of power. Compatible with existing Honeywell flame detectors. Approvals, Gastec/European:GASTEC: CE-63AP3070/1, Approved to EN298.
