Features
- 6250 psi (431 bar) maximum operating pressure
- 750°F (399°C) maximum operating temperature
- 316 SST/316L SST manifold
- PTFE or Graphite-based packing material
- 1/2in -14 NPT female process connection
- Parallel or 90° orientation to transmitter
- Up to 5-year limited warranty

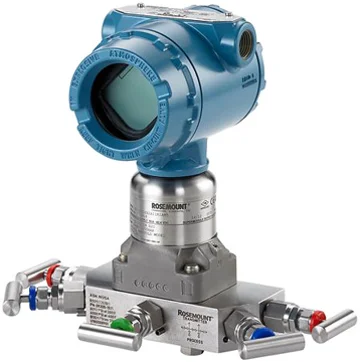

The Rosemount R305 enhanced integral manifold assembles directly to the patented Rosemount Coplanar™ transmitter, eliminating the need for a flange. The Pressure-Lock™ Valve, featured on the Rosemount R305 manifold, offers simplified operation, enhanced reliability and increased operator safety. This lightweight premium manifold is available in 2-, 3- and 5-valve configurations which allows for instrument isolation and controlled venting to ensure measurement integrity.
