Features
- No moving parts
- Easy to install & maintain
- User-scalable pulse rate
- From 0.1 to 99,999.9 volume units/pulse
- Battery powered
- Replaceable 7.2V ‘D’ size battery pack
- Pulse Output Standard

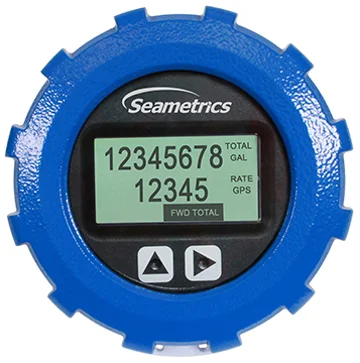

- Rate & total indicator
- 4 to 12 in. pipe sizes
- 32˚ to 200˚F (0˚ to 93˚C) fluid temperature
- Accuracy:
- ±2% of rdg (0.5 to 4.5 m/s)
- ±(2% of rdg + 0.25 of FS) (0.3 to 0.5 m/sec)
- IP67 environmental rating
- Certified to NSF/ANSI standard 61 and NSF 372 (Stainless only with EPDM O-ring. Viton pending)
The Seametrics EX90 Series electromagnetic insertion flow sensor is battery powered and features no moving parts, making it easy to install and maintain. Additionally, this makes the EX90 Series an ideal fit for corrosive and dirty applications such as municipal and wastewater treatment, reuse and reclaim water, and cooling and pump towers. The ability to measure bidirectional flow, a pulse scaled output and optional built-in datalogger are other features of the EX90 Series.
Designed to fit pipe sizes from 4 to 12 inches, the Seametrics EX90 Series electromagnetic insertion flow sensor can withstand up to 200 psi (14 bar) and measure flow rates between 0.3 to 4.5 m/sec (1.64 to 14.8 ft/sec). Readings taken from 0.5 to 4.5 m/sec are done with a ±2% of reading accuracy, while a ±(2% of reading + 0.25% of full scale) accuracy is specified for flow rates from 0.3 to 0.5 m/sec.
