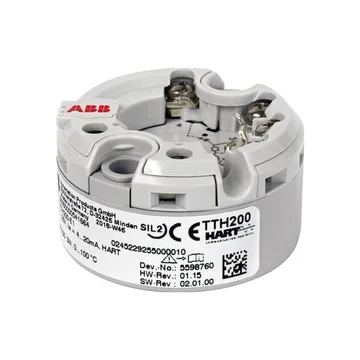

Overview The TTH200 is provided for all HART standard applications in temperature measurement with one sensor. The transmitter supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. It can be configured with ABB-tools such as DAT200 (Asset Vision Basic) via DTM, Handheld via EDD, FIM (Field Information Manager) or any standard tool using FDI-/FDT-Technology. Data Universal sensor input - RTD, thermocouple, O, mV Functional safety SIL 2 / SIL 3 in accordance with IEC 61508 Output signal - 4 to 20 mA, HART Accuracy 0.1 %, long-term stability 0.05 % per year Wire break / corrosion monitoring in accordance with NE 89 Diagnostic information in accordance with NE 107 Approvals for explosion protection - ATEX - FM / CSA - GOST Ordering Information ATEX Intrinsic Safety type of protection: Zone 0: II 1 G *E.g. set measuring range, TAG no.
