Description / توضیحات

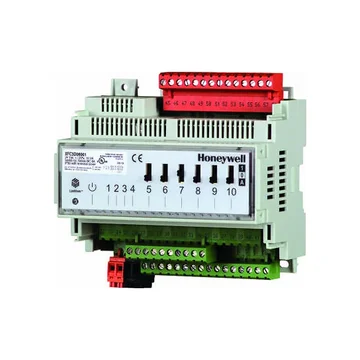

Features
LONMARK™ association-compliant, thus suitable for all open LONWORKS® networks
Flexible, software-configurable inputs/outputs
Flash memory for downloading applications (thus increasing flexibility and facilitating future upgrading)
2-wire FTT-10A LONWORKS® bus interface
Easily-accessible service button and a service LED
Four fast digital inputs configurable for static input or totalizing (at up to 20 Hz)
Four relays to which (after software-configuration) e.g. floating actuators can be directly connected
Two or (model-dependent) four universal inputs, each with extra terminal for powering 24 Vac sensors, supporting (model-dependent) different sensor types, also configurable for voltage-variable or slow digital input
Two analog outputs, each with extra terminal for powering 24 Vac actuators, supporting (modeldependent) voltage-variable or current-variable output
Greater reliability, fewer cables (thus reducing fire burden), lower installation costs, easy start-up and servicing, digital communication
DIN rail (ring cabinet / fuse box) mounting and wallmounting supported
Easy wiring check using the XILON Handheld MMI
Fixed or removable terminals (model-dependent)
24 Vac, 110 Vac, or 230 Vac power supply (modeldependent)
Optional six three-position, software-configurable manual overrides and corresponding feedback
Optional terminal protection covers for wall mounting
Optional swivel label holders for wiring information
