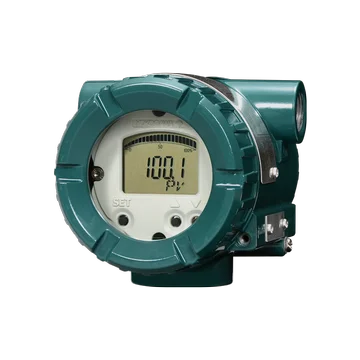

YTA610-FA1A4DN/NS25/A | Yokogawa YTA610 Temperature Transmitter

Name: YTA610-FA1A4DN/NS25/A | Yokogawa YTA610 Temperature Transmitter
Brand: Yokogawa
Price: 726700000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

YTA610-FA1A4DN/NS25/A

زمان تحویل:

12 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Model	YTA610 Temperature Transmitter
Condition	New & Original in Factory Packing
Enclosure	IP66/IP67 in accordance with only IEC 60529
Sensor circuit	Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH
Factory Warranty	12 Months
Ambient Temperature	-55 to 60°C for T4
Applicable Standard	GB 3836. 1-2010, GB 3836.4-2010, GB 3836.20-2010
Dielectric strength	500 V a.c.r.m.s., 1 min
Supply/Output circuit	Ui=30V, li=300mA, Pi=1.2W, Ci-2.2nF, Li=0mH
Lighting protector /A Allowable current	Max. 6000A (8x20µs), repeating 1000A(8x20µs), 100 times

Description / توضیحات

Model and Suffix Codes Model YTA610 YTA610 Temperature Transmitter Output signal -F Digital communication (FOUNDATION Fieldbus protocol) A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket N None NEPSI /NS25 Fieldbus: [Intrinsically safe approval] Certificate No. GYJ16.1423X Ex ia IIC T4 Ga FISCO field device Entity Parameters: [+, -, 1, 2, 3, 4, 5] to Earth terminal [+, -] to [1, 2, 3, 4, 5]
