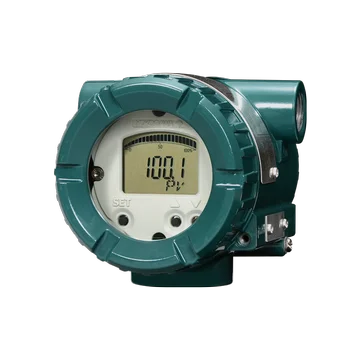

YTA610-FA2A4DN/KU25 | Yokogawa YTA610 Temperature Transmitter

Name: YTA610-FA2A4DN/KU25 | Yokogawa YTA610 Temperature Transmitter
Brand: Yokogawa
Price: 668400000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

YTA610-FA2A4DN/KU25

زمان تحویل:

14 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

A	Always A
/KU25	ATEX
Model	YTA610 - Temperature Transmitter
Enclosure	IP66/IP67
Certificate	KEMA 07ATEX0130
Housing code	A - Aluminium
Sensor input	2 - Double
Output signal	-F - Digital communication (FOUNDATION Fieldbus protocol)
Sensor circuit	Uo=6V, Io=90mA, Po=135mW, Co=10?F, Lo=3.9mH
Electrical code	4 - M20 female
Mounting bracket	N - None
Integral indicator	D - Digital indicator with Local Operating Switch
Ambient Temperature	-55 to 60?C
Dielectric strength	500 V a.c.r.m.s., 1 min
Electrical Connection	1/2 NPT female and M20 female?
Supply/Output circuit	Ui=30V, li=300mA, Pi=1.2W, Ci-22nF, Li=0mH
Ambient Temperature for Gas Atmospheres	-40 to 75?C for T6, -40 to 80?C for T5
Ambient Temperature for Dust Atmospheres	-30 to 65?C for T70?C, -30 to 80?C for T90?C

Description / توضیحات

Model and Suffix Codes Option Codes: Fieldbus: [Intrinsically safe approval] Applicable Standard: EN 60079-0; 2012+A11:2013, EN 60079-11:2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5...T4 Ga FISCO field device Entity Parameters: [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5] [Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014 II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex IIIC T70?C/T90?C Db NOTE: Applicable for Electrical Connection Code 2 and 4.
