Model and Suffix Codes

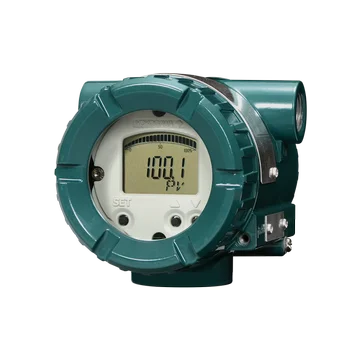

Model YTA610 YTA610 Temperature Transmitter
Output signal -J 4 to 20 mA DC with digital communication HART 7 protocol
A Always A
Sensor input 1 Single
Housing code A Aluminum
Electrical connection 2 1/2 NPT female
Integral indicator D Digital indicator with Local Operating Switch
Mounting bracket B SUS304 stainless steel 2-inch horizontal pipe mounting
Painting(1) /X2 Coating change(2)
High anti-corrosion coating
NEPSI(3) /NS2 4-20mA:
[Intrinsically safe approval ]
Ex ia IIC T4/T5 Ga
Ex ic IIC T4/T5 Gc
Ex iaD [iaD 20] 21 IP6X T135°C
Ambient Temperature:
–40 to 70°C for T4, –40 to 50°C for T5(Ex ia)
–30 to 70°C(Ex iaD)
–30 to 70°C for T4, –30 to 50°C for T5(Ex ic)
Electrical parameters (Ex ia):
Supply/Output circuit: Terminals: +, -
Ui = 30 V, Ii = 200 mA, Pi = 1.0 W, Ci = 22 nF, Li = 0 mH
Sensor circuit: Terminals: 1, 2, 3, 4, 5
Uo = 6 V, Io = 90 mA, Po = 135 mW, Co = 10 µF, Lo = 3.9 mH
Electrial parameters (Ex ic):
Supply/Output circuit: Terminals: +, -
Ui = 30 V, Ci = 22 nF, Li = 0 mH
Sensor circuit: Terminals: 1, 2, 3, 4, 5
Uo = 6 V, Io = 90 mA, Po = 135 mW, Co = 10 µF, Lo = 3.9 mH
Not applicable for Stainless housing.
Not applicable for color change.
Not applicable for Marine Certificate.
