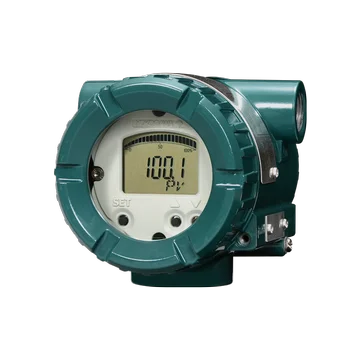

YTA610-JA1A2DD/KU2/A+DOC-TC | Yokogawa YTA610 Temperature Transmitter

Name: YTA610-JA1A2DD/KU2/A+DOC-TC | Yokogawa YTA610 Temperature Transmitter
Brand: Yokogawa
Price: 726700000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

YTA610-JA1A2DD/KU2/A+DOC-TC

زمان تحویل:

14 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Model	YTA610 Temperature Transmitter
Condition	New & Original in Factory Packing
Enclosure	IP66/IP67
Certificate	KEMA 07ATEX0130
Sensor circuit	Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH
Factory Warranty	12 Months
Ambient Temperature	-40 to 70°C for T4, -40 to 50°C for T5
Dielectric strength	500 V a.c.r.m.s, 1 min
Electrical Connection	1/2 NPT female and M20 female(1)
Supply/Output circuit	Ui=30V, li=200mA, Pi=1.0W, Ci=22nF, Li=0mH
Ambient Temperature for Gas Atmospheres	-40 to 75°C for T6, -40 to 80°C for T5
Lighting protector /A Allowable current	Max. 6000A(8x20µs), repeating 1000A(8x20µs), 100 times
Ambient Temperature for Dust Atmospheres	-30 to 65°C for T70°C, -30 to 80°C for T90°C

Description / توضیحات

Ordering Information Model YTA610 YTA610 Temperature Transmitter Output signal -J 4 to 20 mA DC with digital communication HART 7 protocol A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 2 1/2 NPT female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket D 304 SST or ASTM304L stainless steel 2-inch vertical pipe mounting bracket ATEX /KU2 4-20mA: [Intrinsically safe approval] Applicable Standard: EN 60079-0: 2012+A11:2013, EN 60079-11: 2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5..T4 Ga Entity Parameters: [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5] [Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014 II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex IIIC T70°C/T90°C Db +DOC -TC Applicable for Electrical Connection Code 2 and 4.
