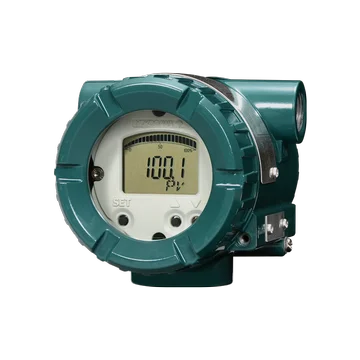

YTA610-JA1A2DN/C1/KU2 | Yokogawa YTA610 Temperature Transmitter

Name: YTA610-JA1A2DN/C1/KU2 | Yokogawa YTA610 Temperature Transmitter
Brand: Yokogawa
Price: 486900000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

YTA610-JA1A2DN/C1/KU2

زمان تحویل:

14 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

A	Always A
KU2	ATEX
Model	YTA610 - Temperature Transmitter
Enclosure	IP66/IP67
Certificate	KEMA 07ATEX0130
Housing code	A - Aluminium
Sensor input	1 - Single
Output signal	-J - 4 to 20 mA DC with DC digital communication HART 7 protocol
Sensor circuit	Uo=6V, Io=90mA, Po=135mW, Co=10?F, Lo=3.9mH
Electrical code	2 - 1/2 NPT female
Mounting bracket	N - None
Integral indicator	D - Digital indicator with Local Operating Switch
Ambient Temperature	-40 to 70?C for T4, -40 to 50?C for T5
Dielectric strength	500 V a.c.r.m.s., 1 min
Electrical Connection	1/2 NPT female and M20 female?
Supply/Output circuit	Ui=30V, li=200mA, Pi=1.0W, Ci-22nF, Li=0mH
Output signal low-side	-5%, 3.2 mA DC or less
Sensor burnout is also set to 'Low'	-2.5%, 3.6 mA DC
Ambient Temperature for Gas Atmospheres	-40 to 75?C for T6, -40 to 80?C for T5
Ambient Temperature for Dust Atmospheres	-30 to 65?C for T70?C, -30 to 80?C for T90?C

Description / توضیحات

Model and Suffix Codes Option Codes: C1: Output signal low-side in transmitter failure? 4-20 mA: [Intrinsically safe approval] Applicable Standard: EN 60079-0; 2012+A11:2013, EN 60079-11:2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5...T4 Ga Entity Parameters: [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5] [Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014 II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex IIIC T70?C/T90?C Db NOTE: Not applicable for Fieldbus type. Applicable for Electrical Connection Code 2 and 4.
