Model and Suffix Codes

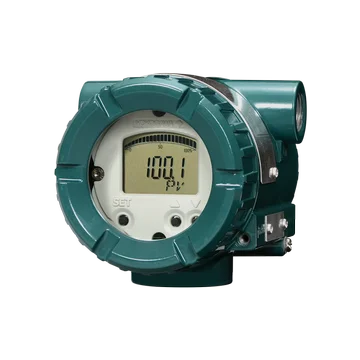

Model YTA610 YTA610 Temperature Transmitter
Output signal -J 4 t0 20 mA DC with digital communication HART 7 protocol
A Always A
Sensor input 1 Single
Housing code A Aluminum
Electrical connection 2 1/2 NPT female
Integral indicator D Digital indicator with Local Operating Switch
Mounting Bracket N None
FM (US) /FU1 4-20mA:
[Intrinsically safe approval/non-incendive approval]
Applicable standard: Class 3600:2011, Class 3610:2015, Class 3611:2004, Class 3810:2005,
ANSI/ISA-60079:2013, ANSI/ISA-60079-11:2014, NEMA 250:2003, ANSI/IEC 60529:2004 (R2011)
Intrinsically safe for
Class I, II, III Division 1, Groups A, B, C, D, E, F, G, T5 ... T4
Class I Zone 0 AEx ia IIC T5 ... T4
Non-incendive for
Class I, II, Division 2, Groups A, B, C, D, F, G, T5 ... T4
Class III, Division 1 T5 ... T4
Class I Zone 2 Group IIC T5 ... T4
Enclosure Type 4X, IP66/IP67 in accordance with only IEC 60529
Entity Parameters:
Intrinsically safe for
Non-incendive for
[+, -, C, 1, 2, 3, 4, 5] to Earth terminal
[+, -, C] to [1, 2, 3, 4, 5]
[Explosionproof approval]
Class I, Division 1, Groups A, B, C, D.;
Class II/III, Division 1, Groups E, F and G.
"FACTORY SEALED, CONDUIT SEAL NOT REQUIRED."
Wired tag plate /N4 SUS316 stainless steel tag plate wired onto transmitter
Applicable for Electrical Connection Code 2.
Not applicable for Stainless housing.
Not applicable for color change.
Not applicable for Fieldbus type.
