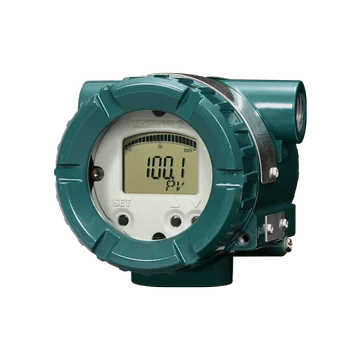

YTA610-JA1C4DN/KU2/N4 | Yokogawa YTA610 Temperature Transmitter

Name: YTA610-JA1C4DN/KU2/N4 | Yokogawa YTA610 Temperature Transmitter
Brand: Yokogawa
Price: 839100000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

YTA610-JA1C4DN/KU2/N4

زمان تحویل:

16 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

Model	YTA610 Temperature Transmitter
Condition	New & Original in Factory Packing
Enclosure	IP66/IP67
Certificate	KEMA 07ATEX0130X
Factory Warranty	12 Months
Ambient Temperature	–30 to +70°C for T4, –30 to +50°C for T5
Applicable Standard	EN IEC 60079-0, EN 60079-1, EN 60079-31
Dielectric strength	500 V a.c.r.m.s.,1 min (Without /A)
Overvoltage category	I
Electrical Connection	1/2 NPT female and M20 female¹
Ambient Temperature for Gas Atmospheres	–40 to 75°C for T6, –40 to 80°C for T5
Ambient Temperature for Dust Atmospheres	–30 to 65°C for T70°C, –30 to 80°C for T90°C

Description / توضیحات

Ordering Information Model YTA610 Temperature Transmitter Output Signal -J 4 to 20 mA DC with digital communication HART protocol A Always A (Global) Sensor input 1 Single Housing code C Stainless Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket N None ATEX /KU2 4-20mA: [Intrinsically safe ia approval] Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5…T4 Ga II 2 (1) D Ex ia [ia Da] IIIC T135°C Db Electrical parameters: Supply/Output circuit: Terminals: +, – Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH [Intrinsically safe ic] II 3 G Ex ic IIC T5...T4 Gc Electrical parameters: Supply/Output circuit: Terminals: +, – Ui=30V, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH [Flameproof and Dust Ignition Proof Approval] II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex tb IIIC T70°C/T90°C Db Wired tag plate /N4 SU316 stainless steel tag plate wired onto transmitter Applicable for Electrical Connection Code 2 and 4.
