Description / توضیحات

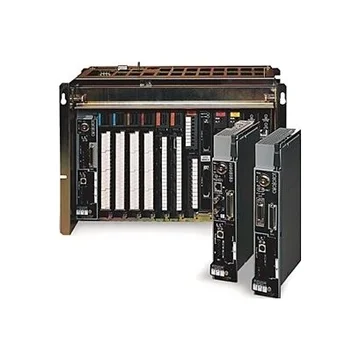

Model 1771-P5E
Module location
2 adjacent slots in a 1771 I/O chassis
Nominal Input Voltage/Current 3.0A, 24V dc
Input Voltage Range 20.5 to 30V dc
Input Power 57 Watts
Frequency Range Not applicable
Isolation Voltage Tested to 2160V dc for 1s
Output Voltage 5.06 (?3.8%)V dc
Output Current 8A @ 5V dc maximum
Fuse 5A 32V normal blow
Bussman MTH5
Littlefuse 312005
IEC 127 Type M (yellow)
Power Dissipation
4W maximum @ 2A
7W maximum @ 4A
12W maximum @ 6A
17W maximum @ 8A
Adjacent Slot Power Dissipation 10W maximum
Terminal Block Screw Torque
7 pound-inches (0.5Nm)
Conductors
Wire Size:
Insulation Category:
14AWG (2.5mm?) copper wire rated at 60?C or greater
3/64 inch (1.2mm) insulation maximum 2?
Branch Circuit Protection 15A maximum, user supplied
Power Loss Time Delay - Input
Power Loss to Processor Disable Adjustable
13.6 (?3.6ms)ms or 60ms
Environmental Conditions
Operating Temperature
IEC 60068-2-1 (Test Ad, Operating Cold)
IEC 60068-2-2 (Test Bd, Operating Dry Heat)
IEC 60068-2-14 (Test Nb, Operating Thermal Shock)
32 to 140? (0 to 60?C)
Storage Temperature
IEC 60068-2-1 (Test Ab, Unpackaged, Nonoperating Cold)
IEC 60068-2-2 (Tested Bd, Unpackaged, Nonoperating Dry Heat)
IEC 60068-2-14 (Tested Na, Unpackaged, Nonoperating Thermal Shock)
-14 to 185?F (-40 to 85?C)
Relative Humidity IEC 60068-2-30 (Test Db, Unpackaged, Nonoperating Damp Heat)
5 to 95%, noncondensing
Enclosure Type Rating None (open-style)
Weight 2.6 lbs (1.18 kg)
Keying - right hand slot between 12 and 14
between 22 and 24
External Transformer (if used) Not applicable
(1) Refer to Allen-Bradley publication 1770-4.1, Industrial Automation Wiring and Groundlines.
(2) See the Product Certification link at www.ab.com for Declarations of Conformity, Certificates, and other certification details.
