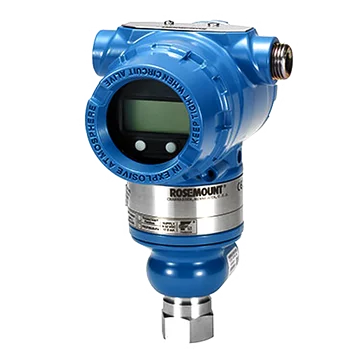

3051TG3A2B21KS5B4K6M5Q4+0305RC52B11B4L4 | Rosemount | In-Line Pressure Transmitter + 305 Integral Manifold

Name: 3051TG3A2B21KS5B4K6M5Q4+0305RC52B11B4L4 | Rosemount | In-Line Pressure Transmitter + 305 Integral Manifold
Brand: Rosemount
Price: 973100000 IRR
Availability: InStock

برند :

Rosemount

پارت نامبر :

3051TG3A2B21KS5B4K6M5Q4+0305RC52B11B4L4

زمان تحویل:

12 هفته

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

ویژگی ها / Specifications

0305	Integral manifold
Body	2 = 316 SST/316L SST
Bonnet	316 SSt
Valve seat	1 = Integral
Product No.	3051TG3A2B21KS5B4K6M5Q4+0305RC52B11B4L4
Product Type	In-Line Pressure Transmitter + 305 Integral Manifold
Manifold type	5 = Five valve
Pressure Type	G = Gage
Bolt materials	L4 = Austenitic 316 SST bolts
Manifold style	C = Coplanar
Pressure Range	3 = –14.7 to 800 psi (–1,01 to 55,15 bar)
0305RC52B11B4L4	305 Integral Manifold
Shipping weight	12Kg
Housing Material	K = SST / Conduit Entry Size M20 x 1.5
Mounting Bracket	B4 = Bracket for 2-in. pipe or panel mounting, all SST
Packing material	1 = PTFE
Integral assembly	S5 = Assemble to Rosemount 306 integral manifold
Mounting brackets	B4 = SST mounting bracket for 2-in. pipe mounting, 300 SST bolts
Sensor Fill Fluid	1 = Silicone
Stem and Tip/ball	316 SST
Transmitter Output	A = 4–20 mA with digital signal based on HART® Protocol
Isolating Diaphragm	2B = 316L SST
Product certifications	K6 = CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)
3051TG3A2B21KS5B4K6M5Q4	In-Line Pressure Transmitter
Process connection style	B = 1/2?14 NPT female
Calibration certification	Q4 = Calibration certificate
Display and interface options	M5 = LCD display
Process Connection Wetted Parts Material	2 = 316L SST
