Features
- Dual preset indicator displays SV & PV simultaneously
- 8 types of input sensors
- Thermocouple types K, J, L, T, R & S
- RTD types Pt100 & Cu50
- Power supply: 100-240VAC 50/60Hz or 24VAC 50/60Hz, 24-48VDC
- Available in four sizes: 1/16 DIN, 1/8 DIN, 1/4 DIN and 72mm x 72mm
- Compact design and large display panels for better viewing
- Built-in relay output or SSRP output selectable and 2EA alarm outputs supported
- SSRP output makes phase control and cycle control possible
- ON/OFF and PID control
- Advanced PID control algorithm and 100ms sampling speed
- CE and UL approved
- Approx. 38% reduced size compared with existing models (depth-based)

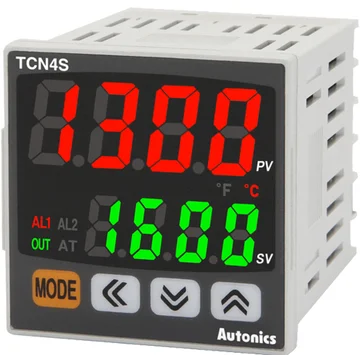

The Autonics TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature
controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling
with SSRP and relay outputs. The Autonics TCN Series is also available in low voltage models for wider user options.
