Features
- Super high-speed 50ms sampling cycle
- ±0.3% display-accuracy
- Available in 6 sizes: 1/32 DIN, 1/16 DIN, 1/8 DIN horizontal, 1/8 DIN vertical, 1/4 DIN and 72mm x 72mm
- Improved visibility with wide display part and high luminance LED
- High performance controlling with heating/cooling control and automatic/manual control modes
- Communication function supported: RS485 (Modbus RTU)
- Allows parameter setting by USB port of PC
- SSR drive voltage output / Current output selectable
- SSRP output (standard/phase/cycle control selectable)
- Heater burn-out alarm (CT input)
- Multi SV setting function (Max. 4) - selectable via digital input terminals

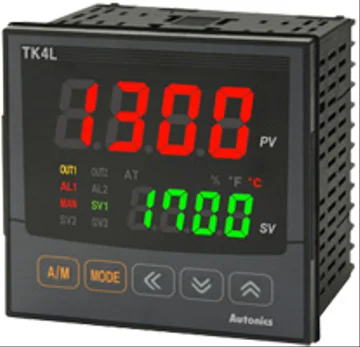

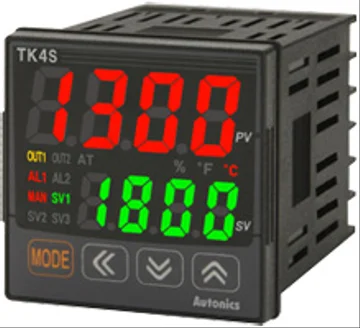

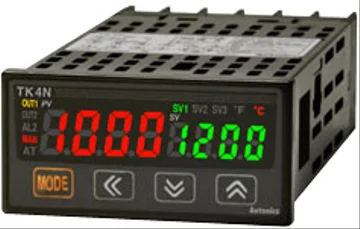

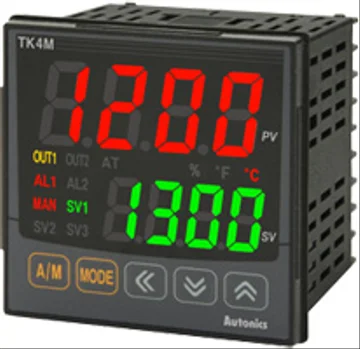

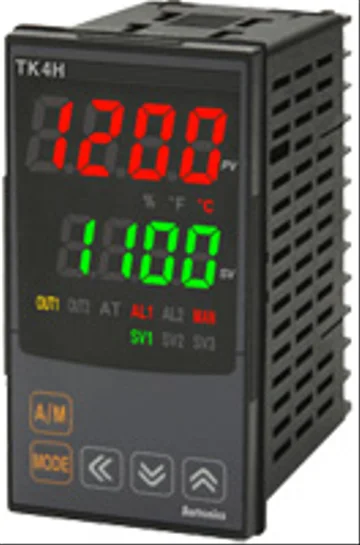

The Autonics TK series is a standard type PID temperature controllers that realizes more powerful controlling with super high-speed sampling cycle of 50ms and ±0.3%
display-accuracy. The TK series supports heating/cooling simultaneous control, automatic/manual control, SSR output/current output selectable function, SSRP output
function and communication function. In addition, it covers diverse input sensor support, multi SV setting, high resolution display part and compact size.
