Features
- ±0.5% F.S. accuracy
- 4.5in nominal size
- Vac to 20,000psi pressure range
- 75% of scale value operating pressure range
- Over pressure limits:
- ≤100 bar: 125% of max scale value
- >100 to ≤600 bar: 115% of max scale value
- >600 to ≤1600 bar: 110% of max scale value

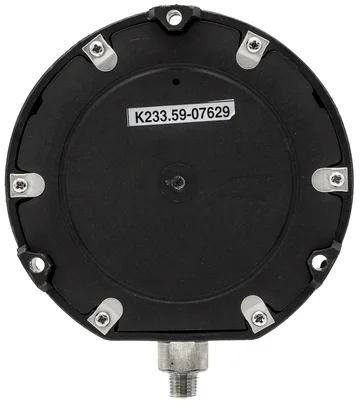

- Solid front gauge with pressure relief back
- Stainless steel wetted parts
- Dry and liquid-filled versions
- IP 65 protection rating

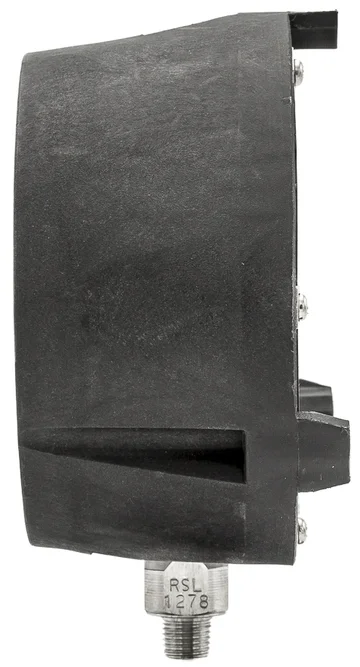

The Bourdon AHG6 series pressure gauge is a Bourdon-type gauge featuring AISI 316L stainless steel wetted parts and a polypropylene case with stainless steel measuring system. The gauge's solid front design features a baffle wall interposed between the sensing system, the window, and a pressure-relieving back for increased safety.
The AHG6 gauge follows the ASME B40.100 standard. It is suitable for high pressure gas and corrosive or hazardous environments.
