Features
- Size:
- 1.97in (50mm)
- 2.48in (63mm)
- ± 1.6% accuracy (Class 1.6)
- For corrosive gases and liquids
- Dry and liquid-filled versions
- Lloyd's Register approval
- IP 65 (EN 60529) protection rating
- ATEX II2GDc-IM2c option

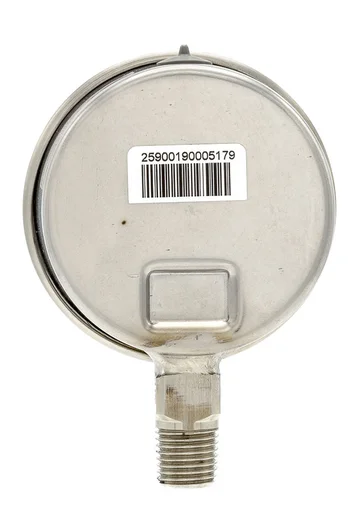

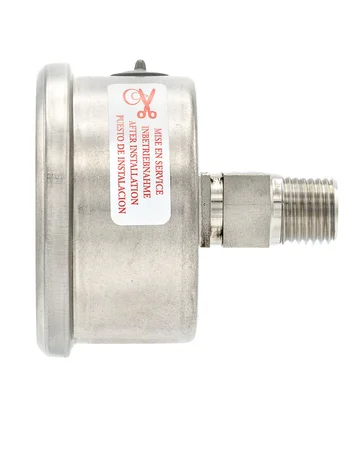

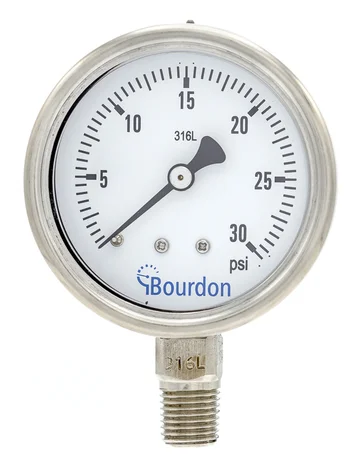

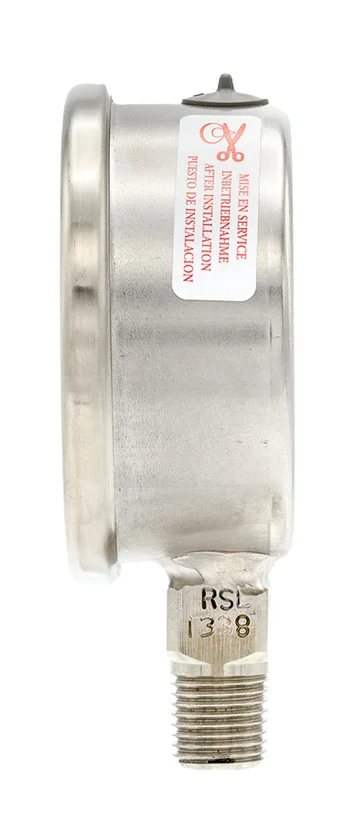

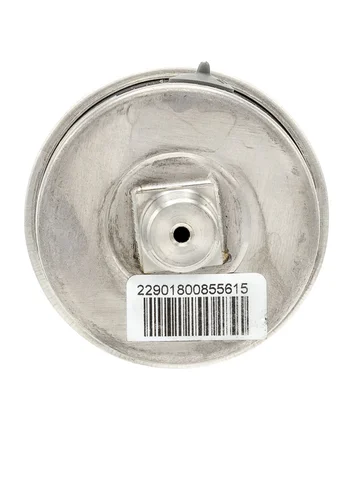

The Bourdon MEX2 / MEX3 Pressure Gauge measures pressures up to 15,000psi and is designed for use with corrosive gases and liquids. Available in 1.97 or 2.48in sizes, the gauge features a stainless steel case, stainless steel or Monel bourdon tube and process connection, and a stainless steel bezel ring.
The Bourdon MEX2 / MEX3 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of high viscosity glycerin, low viscosity glycerin/water, or silicone oil. Standard accuracy is ± 1.6% (Class 1.6 according to EN 837-1). Available connections include G 1/4in, 1/4in NPT, and 1/8in NPT.
Applications
Food and beverage
Laboratory and medical
Oil and gas
Water and waste water
Energy
Transportation and logistics
Machinery
