Description / توضیحات

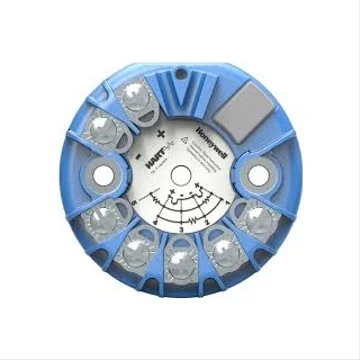

The STT700 is an exciting new addition to the SmartLine Temperature portfolio and upgrades the widely-used STT250 temperature transmitter. The STT250 has been Honeywell’s main temperature transmitter with many decades of in-field use. The STT700 is a direct replacement for the STT250 and thus is suitable for the majority of process applications including those for control and safety while delivering excellent performance at a low installed cost.
Features:
SmartLine platform features including SmartLine Connection Advantage when used with Experion
Single input supporting up to 4-wire RTD sensor connection
Dual input option supporting up to two (2) 3-wire RTD sensor connections
Digital accuracy up to 0.15°C for RTD
Callendar-Van Dusen sensor constants input
HART7 communications
DE communications
Field housing, head mount, panel mount and DIN rail mounting options
Transmitter and sensor diagnostics
FM / CSA / ATEX / IEC Ex approvals
Full compliance with SIL 2 / 3 requirement
Ordering Information
Model STT700 Smart Temperature Transmitter
No. Inputs 1 Single sensor input (4 terminations)
Approvals 00 No Approvals Required
Safety E SIL 2/3 certified
Housing 0 None
End Cap 0 None
Paint Option - Housing 0 Housing - standard offering
Paint Option - Cap 0 End cap - no change
