Features
- Sensitivity:
- 731-207, 731A: 10V/g
- 731A/P31 system: 10, 100, 100V/g selectable
- 0.5g peak acceleration range
- Frequency response:
- 731-207:
- ±5%: 0.6 to 650Hz
- ±10%: 0.5 to 850Hz
- ±3 dB: 0.2 to 1,300Hz
- 731A:
- ±10%: 0.1 to 300Hz
- ±3 dB: 0.05 to 450Hz
- 731A/P31 system:
- 100Hz:
- -10%: 0.08 to 70Hz
- -3 dB: 0.05 to 100Hz
- 450Hz:
- -10%: 0.08 to 300Hz
- -3 dB: 0.05 to 450Hz
- velocity:
- Vibration limit:
- 731-207: 50g peak
- 731A, 731A/P31 system: fragile
- Output connector:
- 731-207: 10-32 coaxial
- 731A: MIL-C-5015, 2-pin
- 731A/P31: MIL-C-5015, 2-pin and BNC
The Wilcoxon Sensing Technologies 731 series compact seismic accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel. The 731-207 features a 10-32 UNF tapped hole for mounting with SF1 stud (included) and a 10-32 coaxial output connector.

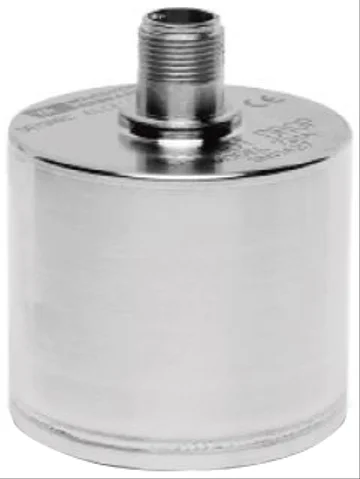

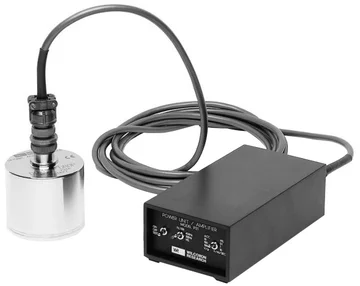

The 731A and 731A/P31 system feature a 2-pin, MIL-C-5015 output connector and include a SF7 mounting stud. Both accelerometer styles are hermetically sealed and manufactured in an ISO 9001 facility.
